GM TECH2 diagnostic tools
GM Tech2 can offer software for SAAB,ISUZU,OPEL,GM,SUZUKI.
GM Tech2 Description: The Tech-2 is the same tester GM Technicians use to diagnose GM vehicles. The Vetronix Tech 2 comes with Authentic GM software and provides support for on-board diagnostics on all GM systems 1992 thru 2010.
GM Tech2 Features: 1.Authentic GM software in the Tech 2 Flash means the most comprehensive diagnostic software available for late model GM vehicles. 2.Support for on-board diagnostics on all GM systems 1992 thru current year. 3.Removable hardware modules provide insurance against scan tool obsolescence. 4.Large, easy-to-read backlit screen. 5.RS232 & RS485 ports provide the avenue to connect future devices to your Tech 2 Flash. 6.Ability to capture stored DTCs, Freeze Frame, and Failure Record for later review. 7.Ability to view the status of vehicle diagnostic tests as they run. 8.Bi-directional The authentic GM 1992-current year software will provide full bi-directional control when performing power train, chassis, and body diagnostics. 9.Vetronix Tech 2 Specifications 10.Dimensions: 12 11.Microprocessor: 32 bit, 16 MHz 12.Memory: 32 MB flash type II PCMCIA. Type III slot available for future expansion. 13.Communications: Integral RS232 communication port. 14.Screen: 3.8.8 backlit monochrome with full graphics capability: 320?40 pixels. Displays up to 9 vehicle parameters at once .Download Tech2 Brochure (5.2 Mb)
An industry change in protocol from OBD II to Controller Area Network (CAN) has begun. In order to perform diagnostics on a vehicle that uses the CAN interface; you will need the Tech 2 Flash and a CAN diagnostic interface module. The module connects between the Tech 2 Flashs diagnostic link cable and the OBD adapter. Once the module is connected, it can be used on all GM vehicle applications, even those vehicles using other platforms such as OBD I and OBD II.
The following GM vehicles utilize the CAN interface: 05 Buick Allure (3.6L) 05 Buick LaCrosse (3.6L) 05 Buick Rainier (5.3L) 04-05 Buick Rendezvous (3.6L) 04-05 Cadillac CTS (3.6L) 04-05 Cadillac SRX (3.6L / 4.6L) 04-05 Cadillac XLR (4.6L) 05 Cadillac STS (3.6L / 4.6L) 05 Chevrolet Cobalt (2.2L) 05 Chevrolet Corvette (6.0L) 05 Chevrolet Equinox (3.4L) 05 Chevrolet TrailBlazer (5.3L) 05 Chevrolet SSR (6.0L) 04 Chevrolet Malibu (Body/Chassis only) 05 Chevrolet Malibu (3.5L) 05 GMC Envoy (5.3L) 05 Pontiac G6 (3.5L) 05 Pontiac GTO (6.0L) 05 Pontiac Pursuit (2.2L)

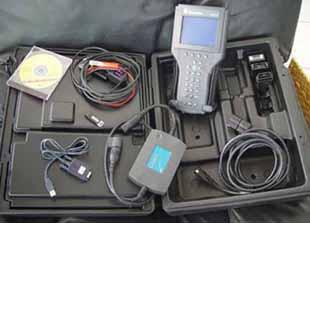

Package includes:
GM Tech 2 Packing List |
NO. |
Item |
Qty |
1 |
One main unit |
1 pc |
2 |
Candi interface |
1 pc |
3 |
GM 32MB card |
1 pc |
4 |
RS323 self test adapter |
1 pc |
5 |
GM 3000098 VTX 02002955 connector |
1 pc |
6 |
GM 3000099 VTX 02002961 connector |
1 pc |
7 |
GM 3000109 VTX 02002953 connector |
1 pc |
8 |
P22812 internet cable |
1 pc |
9 |
P22759 cable |
1 pc |
10 |
Ignition cable |
1 pc |
11 |
CD |
1 pc |
|
